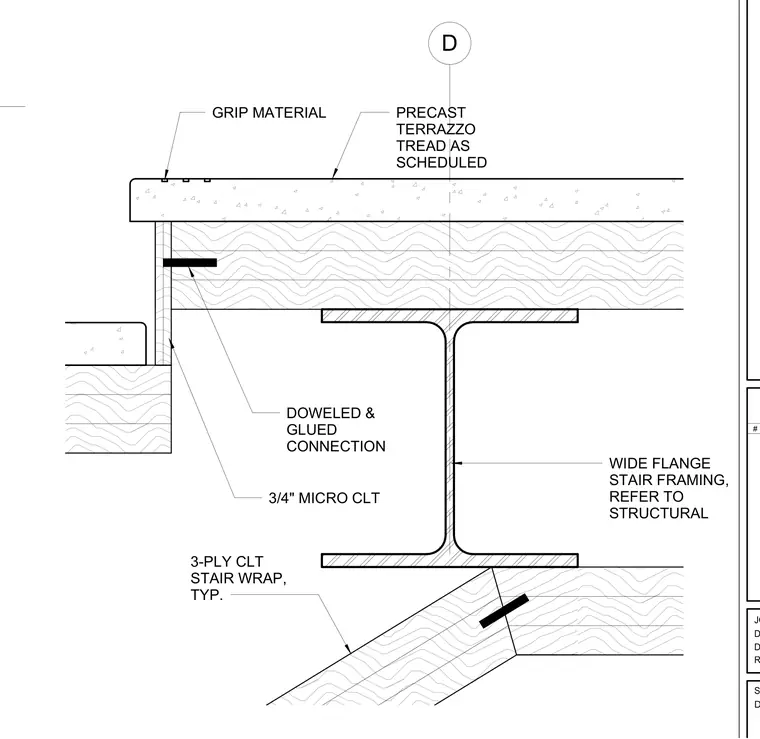

A precast terrazzo tread as scheduled sits atop a three-ply cross-laminated timber stair wrap, featuring an inset grip material near the nosing. The timber wrap connects via a doweled and glued connection to a three-quarter-inch micro cross-laminated timber panel. A wide flange steel shape provides underlying stair framing, with specific structural connections detailed per structural drawings.
D DOWELED & GLUED CONNECTION WIDE FLANGE STAIR FRAMING, REFER TO STRUCTURAL 3-PLY CLT STAIR WRAP, TYP. PRECAST TERRAZZO TREAD AS SCHEDULED GRIP MATERIAL 3/4" MICRO CLT JOB NO. DATE DRAWN REVIEWED SHEET NAME DETAILS - STAIRS #
