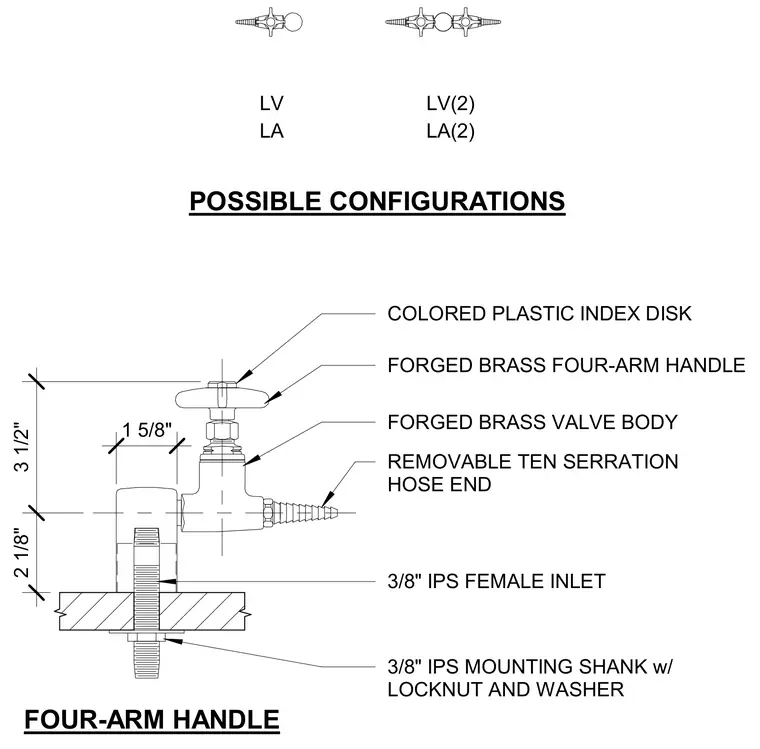

The assembly consists of a forged brass valve body operated by a forged brass four-arm handle topped with a colored plastic index disk. A removable ten-serration hose end connects to the outlet, while the inlet features a three-eighths-inch iron pipe size female connection. The valve is secured to the mounting surface using a three-eighths-inch iron pipe size mounting shank equipped with a locknut and washer. Overall dimensions include a two-and-one-eighth-inch height below the centerline and a three-and-a-half-inch height above.
COLORED PLASTIC INDEX DISK FORGED BRASS FOUR-ARM HANDLE REMOVABLE TEN SERRATION HOSE END 3/8" IPS FEMALE INLET FORGED BRASS VALVE BODY FOUR-ARM HANDLE 3/8" IPS MOUNTING SHANK w/ LOCKNUT AND WASHER LV LA POSSIBLE CONFIGURATIONS 2 1/8" 3 1/2" 1 5/8" LV(2) LA(2)
