Architectural · A-AHMTQ

Tall Plastic Laminate Cabinet Section

Materials

Elements

Walls Doors Floors / Slabs Millwork / Casework

About this detail

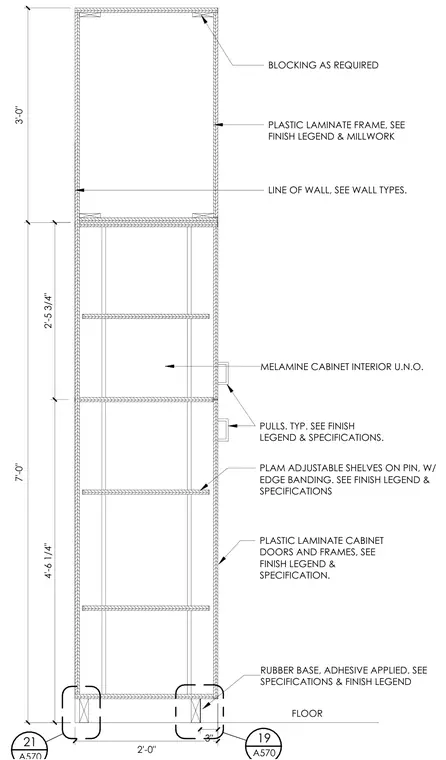

A tall plastic laminate cabinet features a melamine interior, adjustable plastic laminate shelves on shelf pins with edge banding, and plastic laminate doors and frames. Millwork blocking is included as required at the wall line and a rubber base is applied with adhesive at the floor. Typical pulls are attached to the cabinet doors and frames per the finish legend and specifications. Vertical and horizontal dimensions establish the overall height of seven feet and depth of two feet.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
