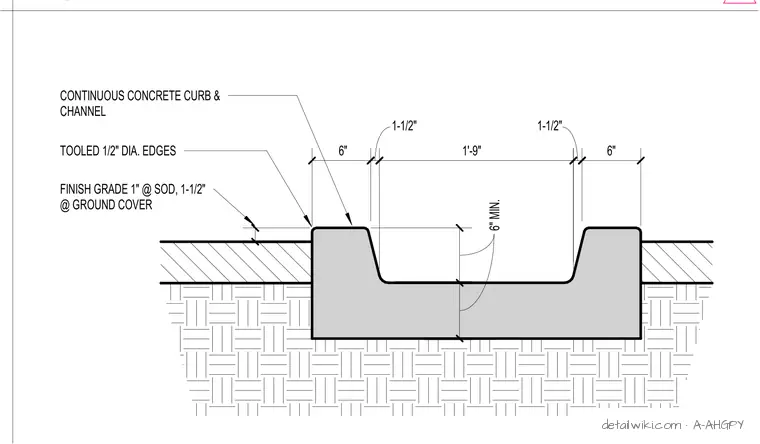

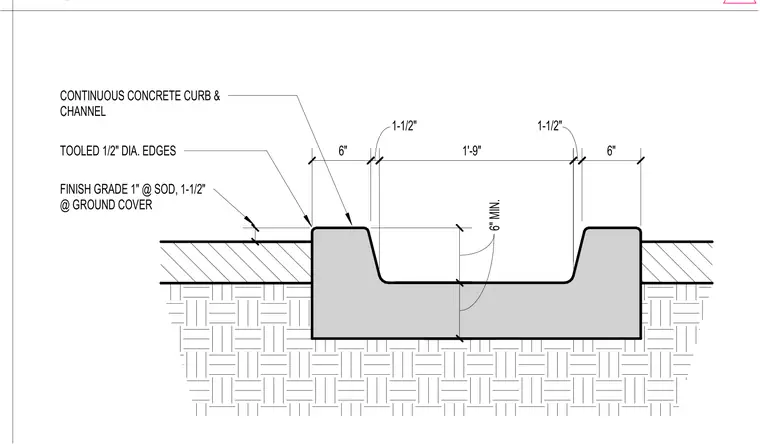

This assembly consists of a continuous concrete curb and drainage channel featuring six-inch wide curbs and a one-foot nine-inch wide channel base. The concrete edges are finished with a one-half-inch diameter tooled radius. The finish grade is set at one inch above the adjacent sod and one and one-half inches above ground cover. The channel maintains a minimum depth of six inches.
Text on the drawing
CONTINUOUS CONCRETE CURB & CHANNEL 6" TOOLED 1/2" DIA. EDGES FINISH GRADE 1" @ SOD, 1-1/2" @ GROUND COVER 1-1/2" 1'-9" 1-1/2" 6" 6" MIN. 1
