Suspended Gypsum Board Ceiling with Diagonal Bracing and Bulkhead

Materials

Elements

About this detail

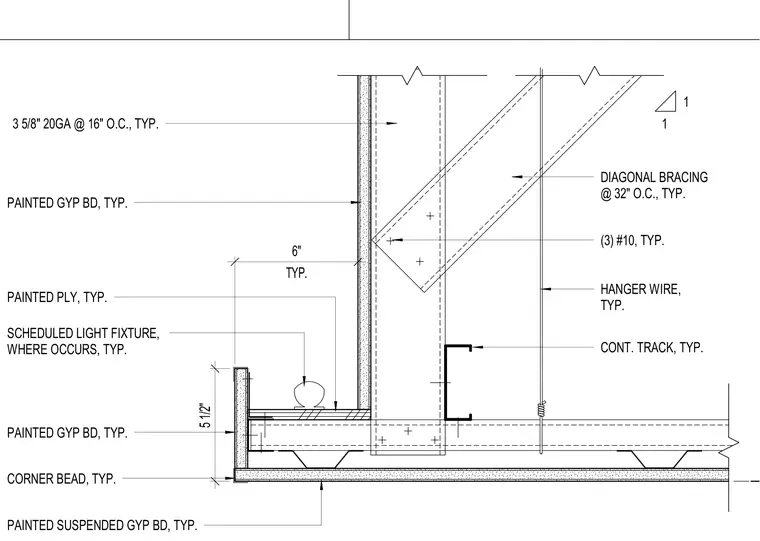

A suspended gypsum board ceiling assembly is framed with 3-5/8 inch twenty-gauge studs spaced at sixteen inches on center. Hanger wires support a continuous track and the assembly is braced with diagonal members spaced at thirty-two inches on center fastened with three number ten screws. The perimeter incorporates a six-inch painted plywood bulkhead with a painted gypsum board finish, corner bead, and a scheduled light fixture where required. The bottom plane consists of painted suspended gypsum board.
