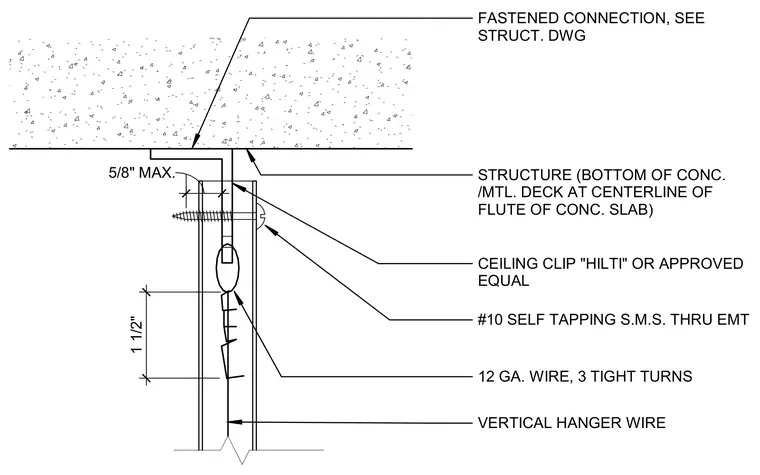

Suspended ceiling hanger wire anchored to the underside of a concrete and metal deck structure using a Hilti ceiling clip or approved equal fastened per structural drawings. A number ten self-tapping sheet metal screw secures the assembly through an electrical metallic tubing sleeve. Twelve-gauge vertical hanger wire is tied with three tight turns, maintaining a one-and-one-half-inch spacing and a maximum five-eighths-inch offset from the support.
FASTENED CONNECTION, SEE STRUCT. DWG STRUCTURE (BOTTOM OF CONC. /MTL. DECK AT CENTERLINE OF FLUTE OF CONC. SLAB) CEILING CLIP "HILTI" OR APPROVED EQUAL #10 SELF TAPPING S.M.S. THRU EMT 12 GA. WIRE, 3 TIGHT TURNS VERTICAL HANGER WIRE 1 1/2" 5/8" MAX.
