Ceramic tile adheres to a gypsum wall assembly with a specified finish, terminating at a TD-11 finishing edge trim. The adjacent wall surface receives a scheduled paint finish or abuts a door frame where applicable. The transition detail provides a clean edge for the tile installation against painted drywall or door jambs.

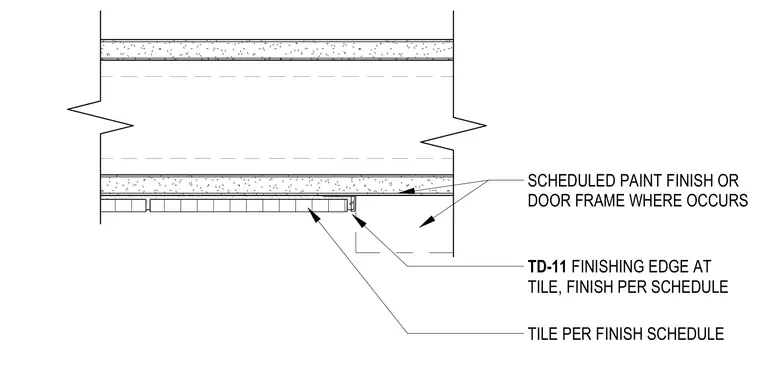

TILE PER FINISH SCHEDULE SCHEDULED PAINT FINISH OR DOOR FRAME WHERE OCCURS TD-11 FINISHING EDGE AT TILE, FINISH PER SCHEDULE
