Fall Protection Anchor at Column

Materials

Metal (misc.)

Elements

Columns Walls Anchors / Embeds

Connections

Bolted Connection

About this detail

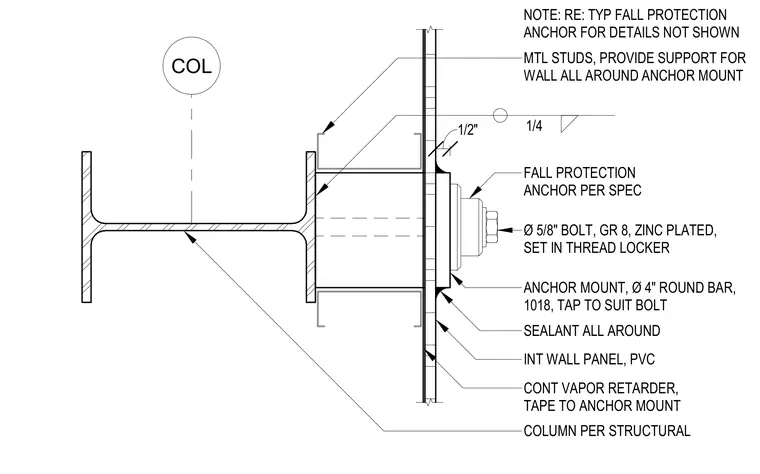

A fall protection anchor is bolted to an anchor mount made from a four-inch diameter round bar, tapped to suit a five-eighths-inch diameter Grade 8 zinc-plated bolt set in thread locker. The anchor mount is welded to the structural steel column with a one-quarter-inch fillet weld and surrounded by sealant. A continuous vapor retarder is taped to the anchor mount behind the interior PVC wall panel. Metal studs provide framing support for the wall all around the anchor mount.
