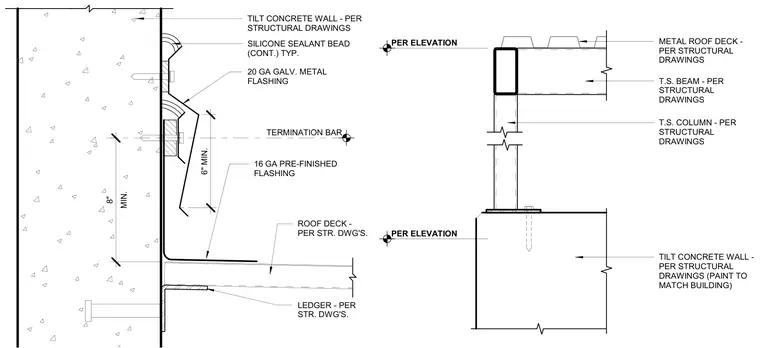

A metal roof deck bears on a structural steel beam and column assembly adjacent to a tilt-up concrete wall. A structural ledger supports the roof deck at the concrete wall interface, where a twenty-gauge galvanized metal flashing extends upward and is secured with a termination bar and continuous silicone sealant bead. A sixteen-gauge pre-finished flashing provides secondary weather protection over the roof edge. The structural steel column connects to the top of the tilt-up concrete wall via base plate and anchor configuration sized per structural drawings.
PER ELEVATION PER ELEVATION TILT CONCRETE WALL - PER STRUCTURAL DRAWINGS (PAINT TO MATCH BUILDING) T.S. BEAM - PER STRUCTURAL DRAWINGS METAL ROOF DECK - PER STRUCTURAL DRAWINGS T.S. COLUMN - PER STRUCTURAL DRAWINGS 6" MIN. TERMINATION BAR MIN. 8" TILT CONCRETE WALL - PER STRUCTURAL DRAWINGS ROOF DECK - PER STR. DWG'S. LEDGER - PER STR. DWG'S. 16 GA PRE-FINISHED FLASHING SILICONE SEALANT BEAD (CONT.) TYP. 20 GA GALV. METAL FLASHING
