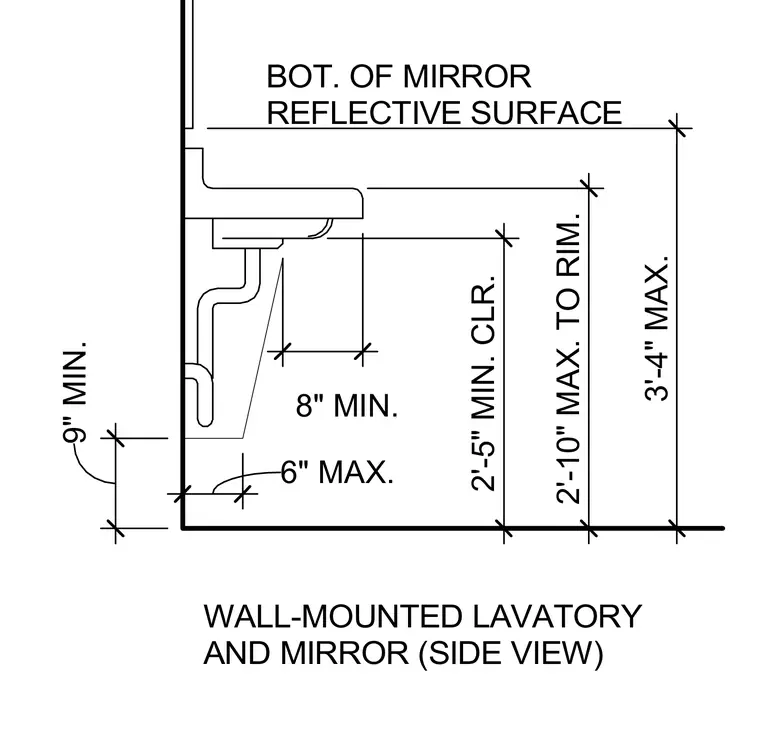

Side elevation detail showing accessibility mounting heights and clearances for a wall-mounted lavatory and mirror. The drawing indicates vertical dimensions including a maximum rim height of two feet ten inches, a minimum knee clearance of two feet five inches, and a maximum mirror bottom height of three feet four inches. Horizontal clearances specify a minimum eight-inch distance from the fixture front and a maximum six-inch floor clearance.
BOT. OF MIRROR REFLECTIVE SURFACE WALL-MOUNTED LAVATORY AND MIRROR (SIDE VIEW) 8" MIN. 6" MAX. 9" MIN. 2'-5" MIN. CLR. 2'-10" MAX. TO RIM. 3'-4" MAX.
