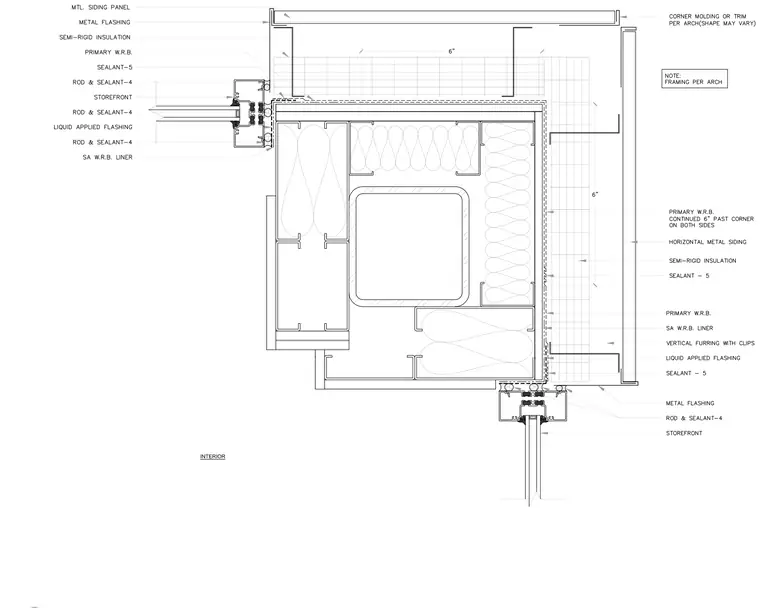

This plan detail shows an exterior storefront corner junction integrating metal siding panels over semi-rigid insulation and vertical furring clips. A primary water-resistive barrier and self-adhered weather-resistive barrier liner wrap the corner assembly with liquid-applied flashing at the framing transitions. Sealant and backer rods seal the storefront perimeter joints alongside metal flashing and a corner molding or trim piece.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
