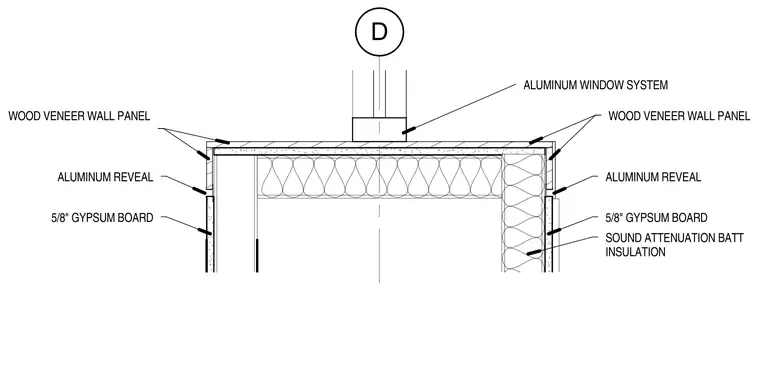

An aluminum window system interfaces with a tenant entrance jamb finished with wood veneer wall panels and aluminum reveals. The surrounding wall framing is clad with five-eighths inch gypsum board on both interior faces, enclosing sound attenuation batt insulation within the cavity.
D ALUMINUM WINDOW SYSTEM ALUMINUM REVEAL WOOD VENEER WALL PANEL 5/8" GYPSUM BOARD ALUMINUM REVEAL 5/8" GYPSUM BOARD WOOD VENEER WALL PANEL SOUND ATTENUATION BATT INSULATION
