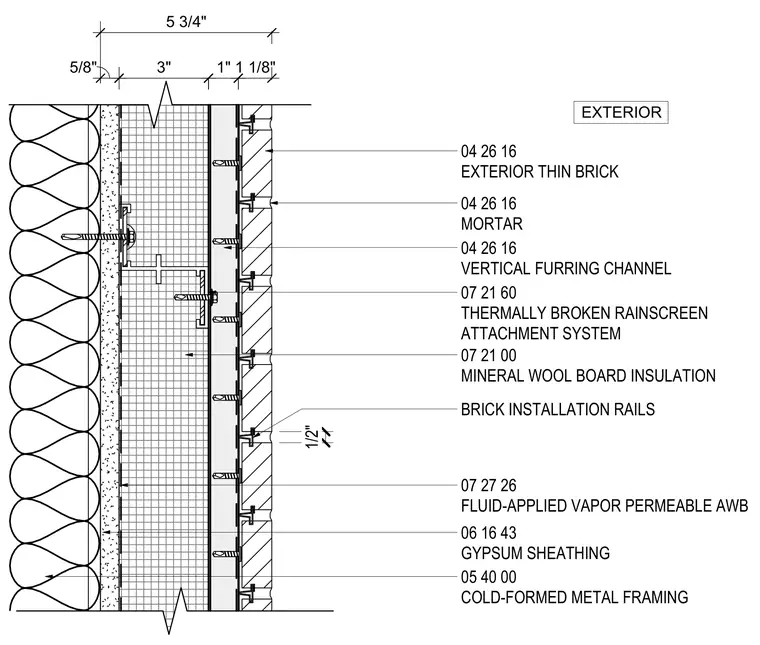

An exterior thin brick rainscreen wall assembly is supported by cold-formed metal framing. The assembly features an interior layer of gypsum sheathing covered by a fluid-applied vapor permeable air and water barrier. Mineral wool board insulation is secured over the barrier using a thermally broken rainscreen attachment system. Vertical furring channels and brick installation rails receive the exterior thin brick units set with mortar.
1" 1 1/8" 3" 5/8" EXTERIOR 5 3/4" 06 16 43 GYPSUM SHEATHING 07 21 00 MINERAL WOOL BOARD INSULATION 07 27 26 FLUID-APPLIED VAPOR PERMEABLE AWB 07 21 60 THERMALLY BROKEN RAINSCREEN ATTACHMENT SYSTEM 04 26 16 VERTICAL FURRING CHANNEL 04 26 16 EXTERIOR THIN BRICK 04 26 16 MORTAR 05 40 00 COLD-FORMED METAL FRAMING 1/2" BRICK INSTALLATION RAILS
