A pre-fabricated concrete-filled landing and stair system is supported by pre-fabricated channel stringers. Each tread incorporates a photoluminescent integrated nosing as a typical detail. A dimension of one foot zero inches indicates a specific clearance or setback.

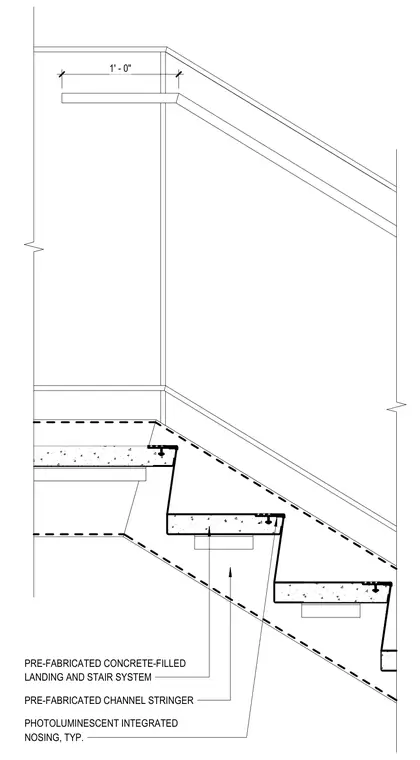

1' - 0" PRE-FABRICATED CONCRETE-FILLED LANDING AND STAIR SYSTEM PRE-FABRICATED CHANNEL STRINGER PHOTOLUMINESCENT INTEGRATED NOSING, TYP.
