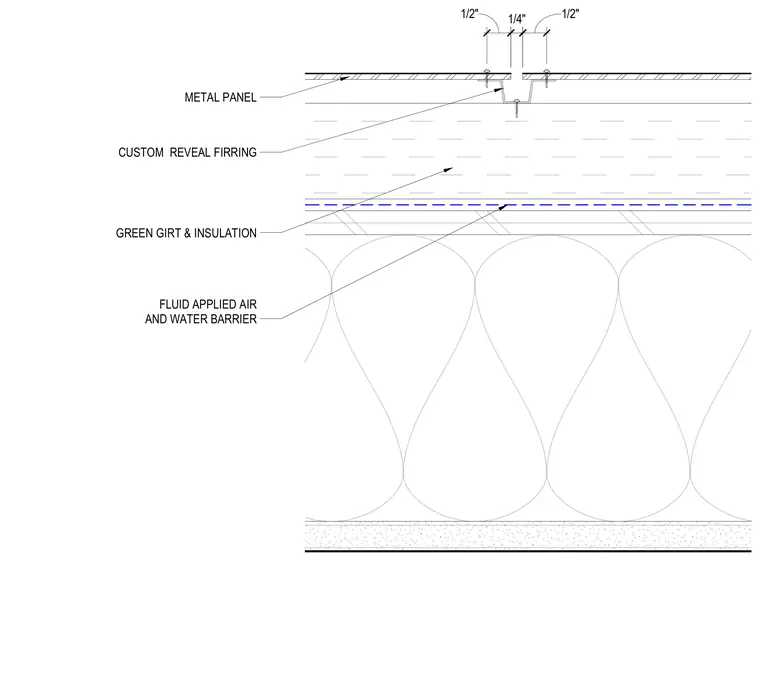

Metal panels attach over a custom reveal firring channel at the panel joint, secured with fasteners spaced with a quarter-inch and half-inch clearance layout. Continuous insulation blankets the backing wall over a fluid-applied air and water barrier applied directly to the substrate. The assembly integrates green girt supports with rigid insulation layers behind the exterior metal cladding.
1/4" GREEN GIRT & INSULATION FLUID APPLIED AIR AND WATER BARRIER CUSTOM REVEAL FIRRING 1/2" 1/2" METAL PANEL
