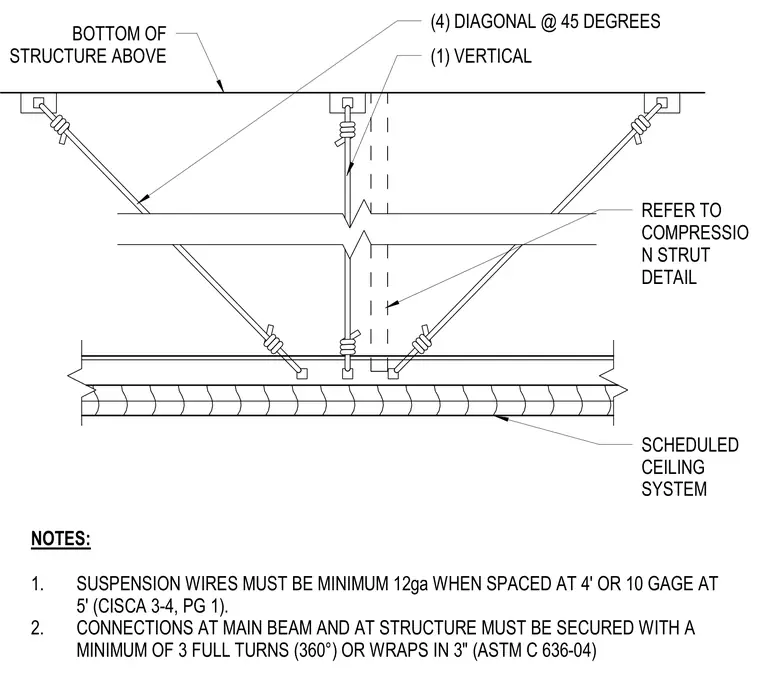

This seismic bracing detail connects a scheduled suspended ceiling system to the bottom of the structure above using four diagonal wires at forty-five degrees and one vertical wire. Suspension wires must be a minimum of twelve gauge when spaced at four feet, or ten gauge at five feet. Connections at the main beam and at the structure must be secured with a minimum of three full turns or wraps in three inches.
REFER TO COMPRESSIO N STRUT DETAIL (1) VERTICAL (4) DIAGONAL @ 45 DEGREES BOTTOM OF STRUCTURE ABOVE SCHEDULED CEILING SYSTEM NOTES: 1. SUSPENSION WIRES MUST BE MINIMUM 12ga WHEN SPACED AT 4' OR 10 GAGE AT 5' (CISCA 3-4, PG 1). 2. CONNECTIONS AT MAIN BEAM AND AT STRUCTURE MUST BE SECURED WITH A MINIMUM OF 3 FULL TURNS (360°) OR WRAPS IN 3" (ASTM C 636-04)
