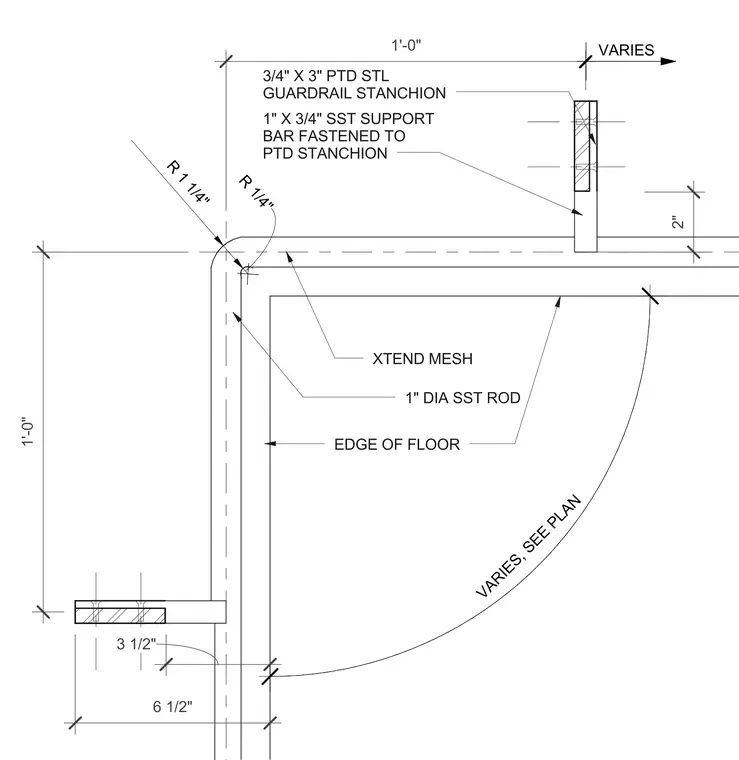

A 3/4 inch by 3 inch painted steel guardrail stanchion is mounted at the edge of the floor with variable spacing. A 1 inch by 3/4 inch stainless steel support bar is fastened to the painted stanchion. An extended mesh infill spans behind a 1 inch diameter stainless steel rod that follows the perimeter geometry with 1 1/4 inch and 1/4 inch radii at the corner. Floor edge dimensions measure 6 1/2 inches and 3 1/2 inches.
2" 3/4" X 3" PTD STL GUARDRAIL STANCHION XTEND MESH 1" DIA SST ROD 1'-0" 1'-0" VARIES 1" X 3/4" SST SUPPORT BAR FASTENED TO PTD STANCHION EDGE OF FLOOR 6 1/2" 3 1/2" VARIES, SEE PLAN R 1 1/4" R 1/4"
