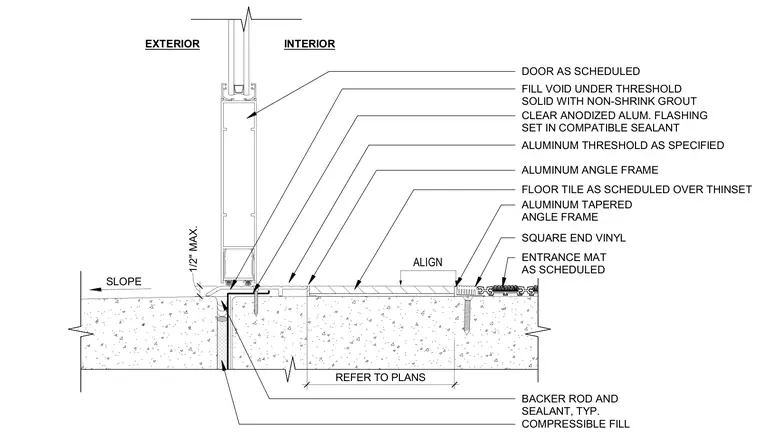

An exterior door sill transitions to an interior entrance mat assembly mounted over a concrete slab. The door frame and aluminum threshold sit above a clear anodized aluminum flashing set in compatible sealant, with voids beneath the threshold filled solid with non-shrink grout. A compressible fill and backer rod with sealant are installed at the exterior slab joint, where the exterior grade slopes away. On the interior side, floor tile over thin-set mortar aligns with an aluminum tapered angle frame and a square end vinyl entrance mat as scheduled.
ALIGN SLOPE BACKER ROD AND SEALANT, TYP. COMPRESSIBLE FILL CLEAR ANODIZED ALUM. FLASHING SET IN COMPATIBLE SEALANT DOOR AS SCHEDULED ALUMINUM THRESHOLD AS SPECIFIED SQUARE END VINYL ENTRANCE MAT AS SCHEDULED FILL VOID UNDER THRESHOLD SOLID WITH NON-SHRINK GROUT ALUMINUM TAPERED ANGLE FRAME FLOOR TILE AS SCHEDULED OVER THINSET REFER TO PLANS EXTERIOR INTERIOR ALUMINUM ANGLE FRAME 1/2" MAX.
