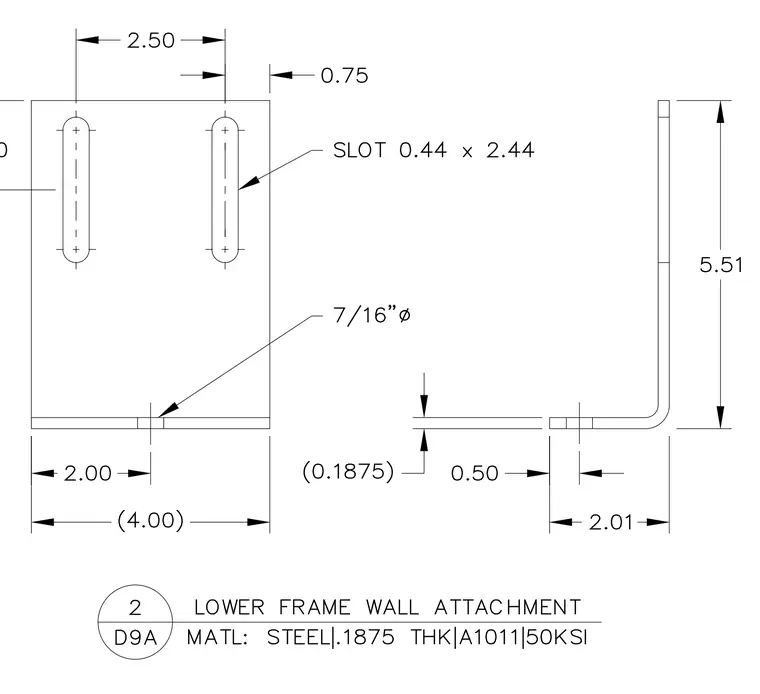

The lower frame wall attachment consists of a formed steel angle bracket fabricated from ASTM A1011 50 ksi steel with a thickness of 0.1875 inches. The vertical leg measures 5.51 inches in height and contains two vertical slotted holes measuring 0.44 inches by 2.44 inches. The horizontal leg extends 2.01 inches with a single 7/16-inch diameter hole centered 2.00 inches from the edge.
(4.00) 2.50 1.50 0.75 2.00 SLOT 0.44 x 2.44 7/16"∅ 2.01 5.51 (0.1875) 0.50 LOWER FRAME WALL ATTACHMENT 2 D9A MATL: STEEL|.1875 THK|A1011|50KSI - + - + + I I T J + 1 I
