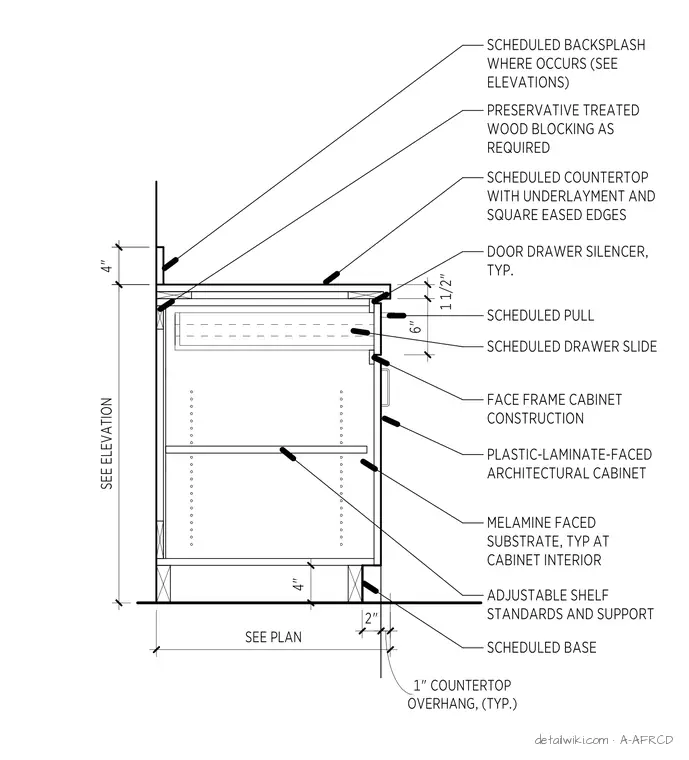

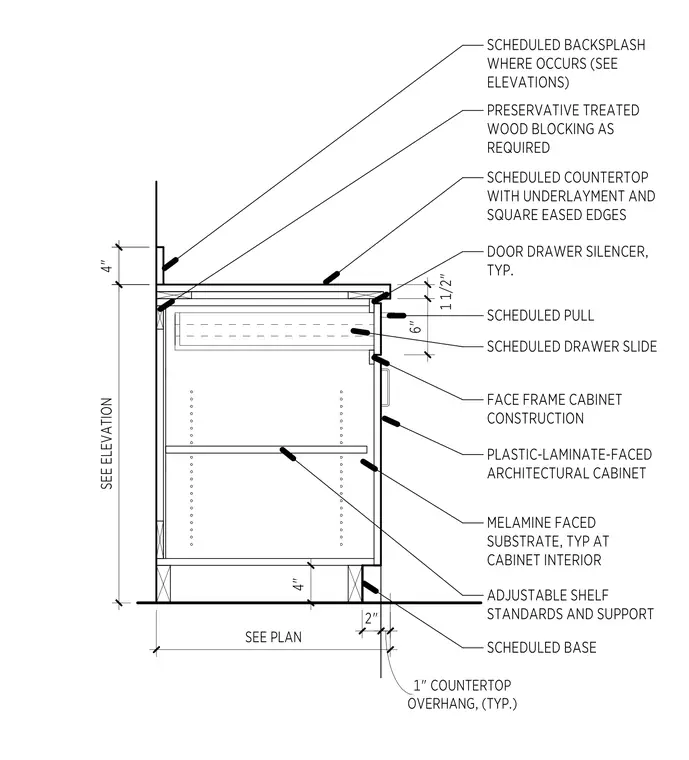

This base cabinet assembly features face frame construction with a plastic-laminate-faced exterior and a melamine-faced substrate at the interior. The countertop includes an underlayment with square eased edges and a typical one-inch overhang, supported by preservative-treated wood blocking as required. A scheduled backsplash is provided where indicated on elevations. The cabinet interior contains adjustable shelf standards and supports, while the upper section houses a drawer on a scheduled slide with a typical door and drawer silencer. The base is finished with a scheduled base trim, and the drawer front is equipped with a scheduled pull.
