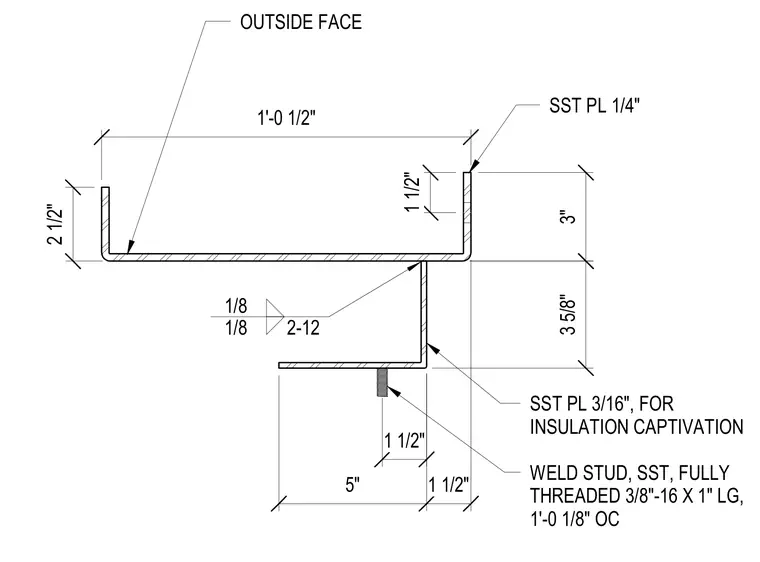

This assembly consists of a stainless steel plate member welded with a 1/8 inch fillet weld at 12 inches on center to a 3/16 inch stainless steel plate utilized for insulation captivation. The support includes a 1/4 inch stainless steel plate and is anchored with fully threaded 3/8-16 by 1 inch stainless steel weld studs spaced at 1'-0 1/8" on center.
1'-0 1/2" 3 5/8" 2 1/2" 3" 5" 1 1/2" 1/8 2-12 1/8 1 1/2" OUTSIDE FACE SST PL 3/16", FOR INSULATION CAPTIVATION SST PL 1/4" 1 1/2" WELD STUD, SST, FULLY THREADED 3/8"-16 X 1" LG, 1'-0 1/8" OC
