A steel bracket painted black supports the vanity counter and features one-and-a-half-inch slots and one-eighth-inch stainless steel typical construction. A removable millwork panel is secured to the bracket with magnets and field verified for depth after rough plumbing is installed to ensure the apron extends below the P-trap. The maximum height is set to two feet ten inches above finished floor, complying with ADA mounting height requirements for required clearances.

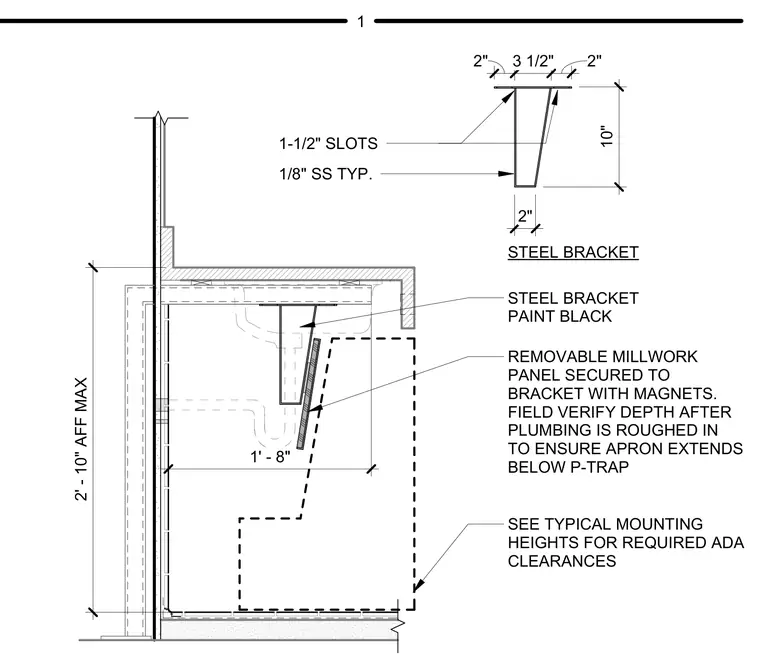

SEE TYPICAL MOUNTING HEIGHTS FOR REQUIRED ADA CLEARANCES STEEL BRACKET PAINT BLACK 1-1/2" SLOTS STEEL BRACKET 1/8" SS TYP. 2" 2" 3 1/2" 2" 10" REMOVABLE MILLWORK PANEL SECURED TO BRACKET WITH MAGNETS. FIELD VERIFY DEPTH AFTER PLUMBING IS ROUGHED IN TO ENSURE APRON EXTENDS BELOW P-TRAP 2' - 10" AFF MAX 1' - 8" 1
