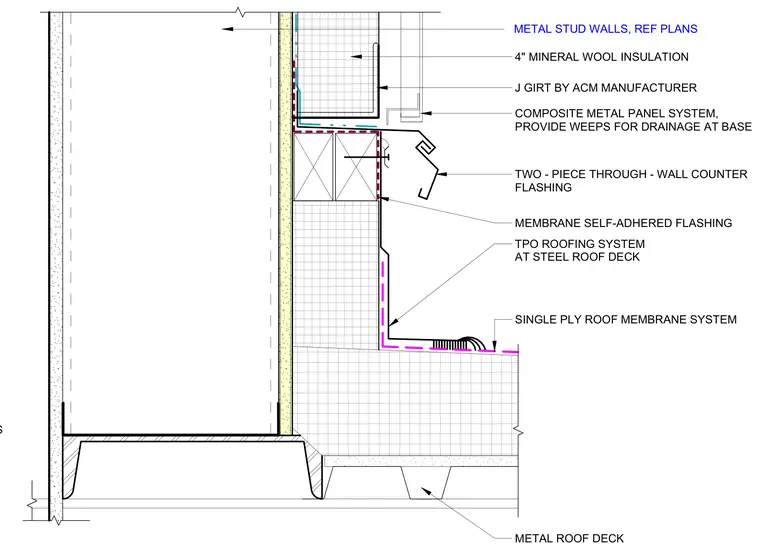

A single-ply TPO roofing system over a steel roof deck interfaces with a composite metal panel wall assembly at the roof-to-wall transition of an entry canopy or roof base. A continuous self-adhered membrane flashing extends up the vertical transition behind a two-piece through-wall counter flashing. Four-inch mineral wool insulation fills the metal stud wall cavity behind the ACM manufacturer's J girt, supporting the composite metal panel system with incorporated base weeps for drainage.
TPO ROOFING SYSTEM AT STEEL ROOF DECK METAL STUD WALLS, REF PLANS TWO - PIECE THROUGH - WALL COUNTER FLASHING MEMBRANE SELF-ADHERED FLASHING METAL ROOF DECK SINGLE PLY ROOF MEMBRANE SYSTEM COMPOSITE METAL PANEL SYSTEM, PROVIDE WEEPS FOR DRAINAGE AT BASE J GIRT BY ACM MANUFACTURER 4" MINERAL WOOL INSULATION COLOR TO MATCH ADJACENT EIFS
