Accessible Lavatory and Mirror Clearance Requirements

Elements

About this detail

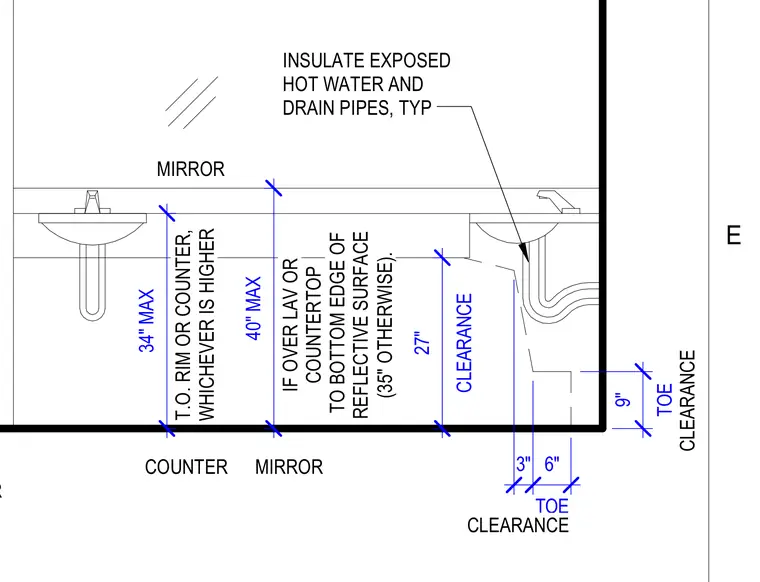

Accessible restroom configurations require specific vertical and horizontal clearances for lavatories, counters, and mirrors. The countertop or sink rim sits at a maximum height of thirty-four inches. A knee clearance height of twenty-seven inches is maintained below the lavatory, accompanied by a nine-inch toe clearance. Exposed hot water and drain pipes require thermal insulation. The mirror bottom edge mounts at a maximum height of forty inches above the floor or countertop, or thirty-five inches otherwise.
