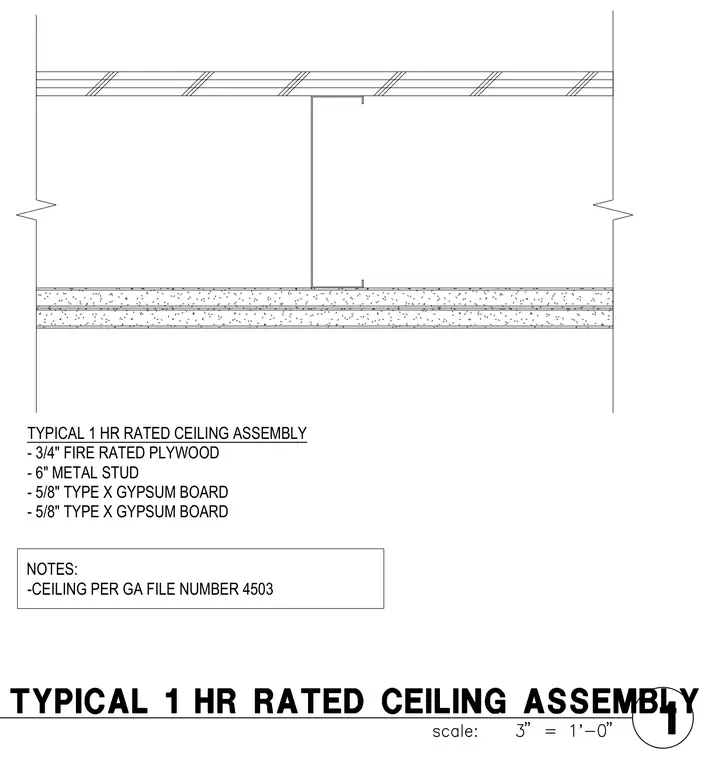

A typical 1-hour fire-rated ceiling assembly is constructed with a six-inch metal stud framed below a three-quarter-inch fire-rated plywood deck. The underside of the ceiling framing is finished with two layers of five-eighths-inch Type X gypsum board. The assembly complies with Gypsum Association file number 4503.
TYPICAL 1 HR RATED CEILING ASSEMBLY - 3/4" FIRE RATED PLYWOOD - 6" METAL STUD - 5/8" TYPE X GYPSUM BOARD - 5/8" TYPE X GYPSUM BOARD NOTES: -CEILING PER GA FILE NUMBER 4503
