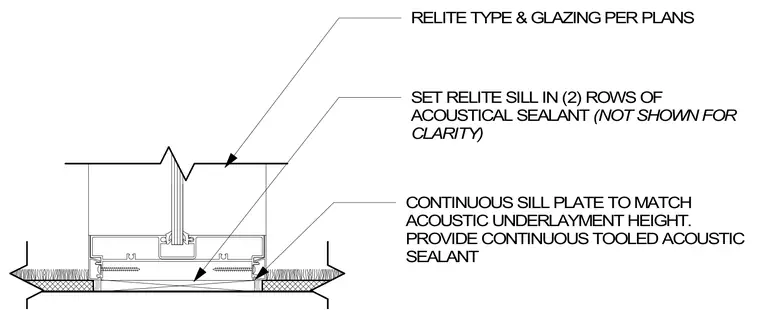

The relite sill is set in two rows of acoustical sealant over a continuous sill plate matching the acoustic underlayment height. A continuous tooled acoustic sealant bead is applied at the sill plate. Glazing and relite type are installed per plans.
RELITE TYPE & GLAZING PER PLANS CONTINUOUS SILL PLATE TO MATCH ACOUSTIC UNDERLAYMENT HEIGHT. PROVIDE CONTINUOUS TOOLED ACOUSTIC SEALANT SET RELITE SILL IN (2) ROWS OF ACOUSTICAL SEALANT (NOT SHOWN FOR CLARITY)
