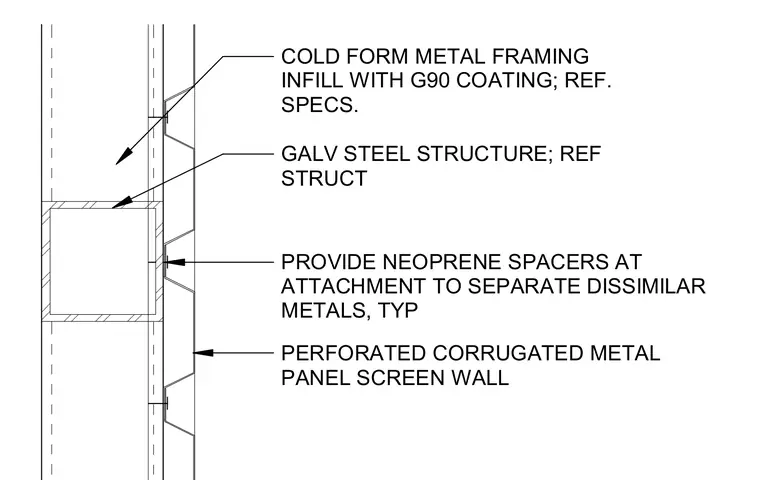

Perforated corrugated metal panel screen walls are mounted to cold-formed metal framing infill with G90 coating over a galvanized steel structure. Neoprene spacers are provided at attachment points to separate dissimilar metals and prevent galvanic corrosion.
GALV STEEL STRUCTURE; REF STRUCT PERFORATED CORRUGATED METAL PANEL SCREEN WALL PROVIDE NEOPRENE SPACERS AT ATTACHMENT TO SEPARATE DISSIMILAR METALS, TYP COLD FORM METAL FRAMING INFILL WITH G90 COATING; REF. SPECS.
