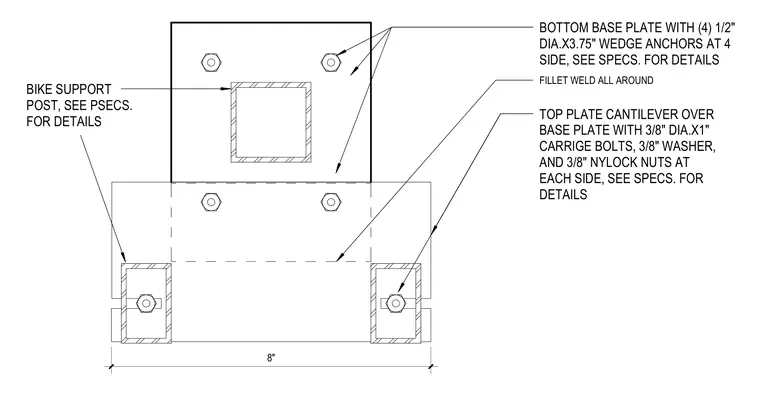

The assembly consists of a bottom base plate secured by four one-half-inch diameter by three-and-three-quarter-inch wedge anchors on each side. A bike support post is connected to the plates with a fillet weld all around. The top plate cantilevers over the base plate and is fastened with three-eighth-inch diameter by one-inch carriage bolts, three-eighth-inch washers, and three-eighth-inch nylock nuts at each side.
BOTTOM BASE PLATE WITH (4) 1/2" DIA.X3.75" WEDGE ANCHORS AT 4 SIDE, SEE SPECS. FOR DETAILS BIKE SUPPORT POST, SEE PSECS. FOR DETAILS TOP PLATE CANTILEVER OVER BASE PLATE WITH 3/8" DIA.X1" CARRIGE BOLTS, 3/8" WASHER, AND 3/8" NYLOCK NUTS AT EACH SIDE, SEE SPECS. FOR DETAILS FILLET WELD ALL AROUND 8"
