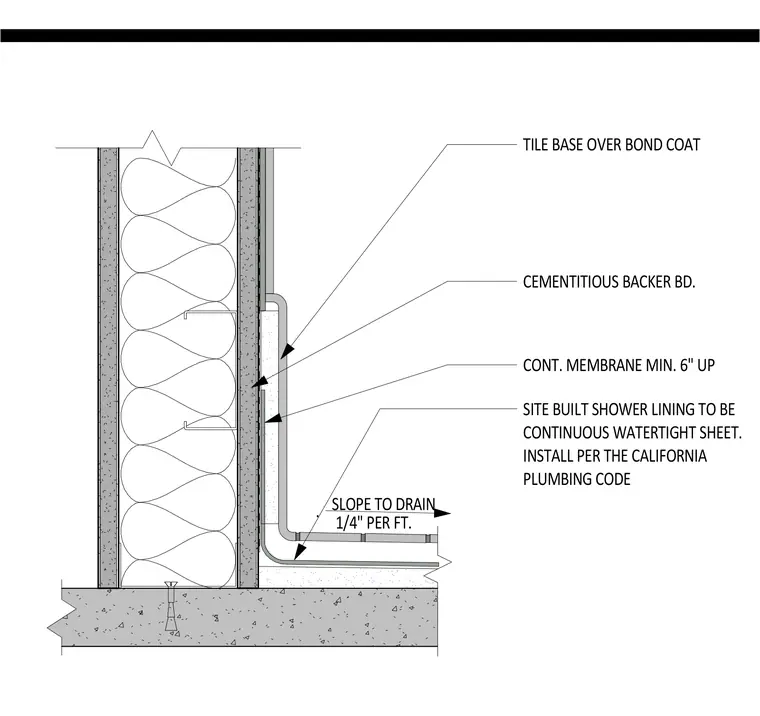

The assembly is built over a concrete slab supporting a metal stud wall faced with cementitious backer board. A site-built continuous watertight sheet membrane is installed behind the finish layers and extends a minimum of six inches up the wall. A tile base is applied over a bond coat directly above the membrane-lined base. The shower pan slopes toward the drain at one-quarter inch per foot in accordance with the California Plumbing Code.
CEMENTITIOUS BACKER BD. TILE BASE OVER BOND COAT SITE BUILT SHOWER LINING TO BE CONTINUOUS WATERTIGHT SHEET. INSTALL PER THE CALIFORNIA PLUMBING CODE SLOPE TO DRAIN . 1/4" PER FT. CONT. MEMBRANE MIN. 6" UP
