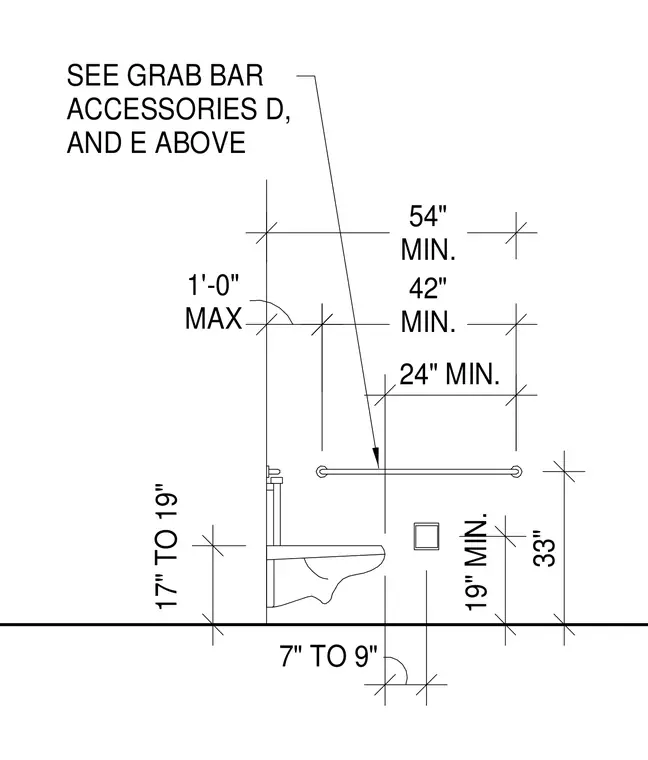

Accessibility mounting heights and clearances specify a grab bar positioned thirty-three inches minimum above the finished floor, with a horizontal length of fifty-four inches minimum. The wall-mounted toilet requires a distance of seventeen to nineteen inches from the floor to the top of the seat. Additional clearances include a toilet paper dispenser mounted seven to nine inches in front of the water closet and nineteen inches minimum above the floor. Vertical clearances extend up to forty-two inches minimum and fifty-four inches minimum for upper wall accessories.
33" 7" TO 9" 17" TO 19" 19" MIN. 54" MIN. 42" MIN. 1'-0" MAX 24" MIN. SEE GRAB BAR ACCESSORIES D, AND E ABOVE
