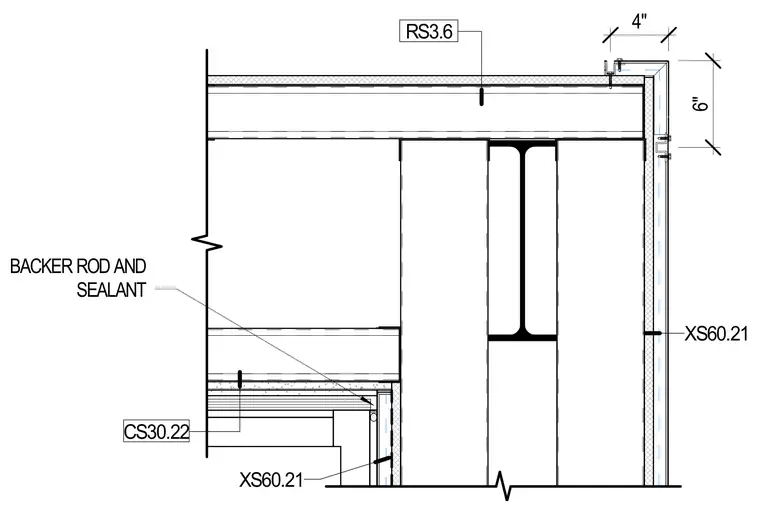

This interior wall to roof junction at the main entrance incorporates structural steel framing, interior wall finishes, and roof assembly components sealed with backer rod and sealant. The connection details feature specific dimensional clearances including four-inch and six-inch measurements for flashing and alignment. Reference tags RS3.6, CS30.22, and XS60.21 coordinate the architectural and structural intersections at this threshold.
