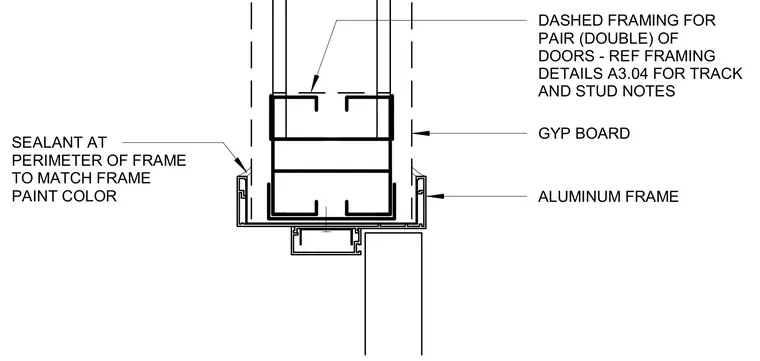

An extruded aluminum frame interfaces with gypsum board walls surrounding a pair of doors, utilizing dashed framing members for structural support. Sealant is applied at the perimeter of the frame and matched to the frame paint color.
ALUMINUM FRAME GYP BOARD DASHED FRAMING FOR PAIR (DOUBLE) OF DOORS - REF FRAMING DETAILS A3.04 FOR TRACK AND STUD NOTES SEALANT AT PERIMETER OF FRAME TO MATCH FRAME PAINT COLOR
