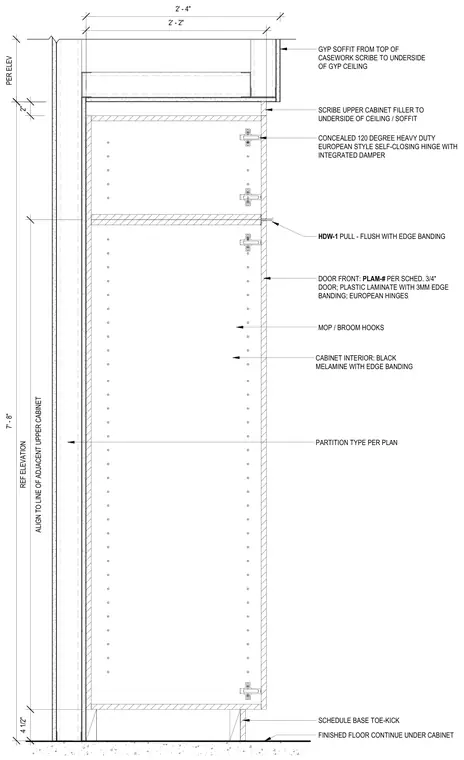

This interior millwork detail shows a tall utility and mop-and-broom storage cabinet with a plastic laminate door front and three-millimeter edge banding. The cabinet interior features black melamine with adjustable shelf pin holes and heavy-duty one-hundred-twenty-degree concealed European-style self-closing hinges with integrated dampening. A flush pull hardware designation HDW-1 is mounted on the door aligned with the edge banding. The upper cabinet filler is scribed to the underside of the gypsum board ceiling soffit. At the base, a toe-kick is scheduled above the finished floor which continues underneath the cabinet.
PARTITION TYPE PER PLAN SCRIBE UPPER CABINET FILLER TO UNDERSIDE OF CEILING / SOFFIT PER ELEV 2' - 4" 7' - 8" CONCEALED 120 DEGREE HEAVY DUTY EUROPEAN STYLE SELF-CLOSING HINGE WITH INTEGRATED DAMPER DOOR FRONT: PLAM-# PER SCHED. 3/4" DOOR; PLASTIC LAMINATE WITH 3MM EDGE BANDING; EUROPEAN HINGES 2' - 2" 2" GYP SOFFIT FROM TOP OF CASEWORK SCRIBE TO UNDERSIDE OF GYP CEILING FINISHED FLOOR CONTINUE UNDER CABINET SCHEDULE BASE TOE-KICK 4 1/2" ALIGN TO LINE OF ADJACENT UPPER CABINET REF ELEVATION MOP / BROOM HOOKS HDW-1 PULL - FLUSH WITH EDGE BANDING CABINET INTERIOR: BLACK MELAMINE WITH EDGE BANDING
