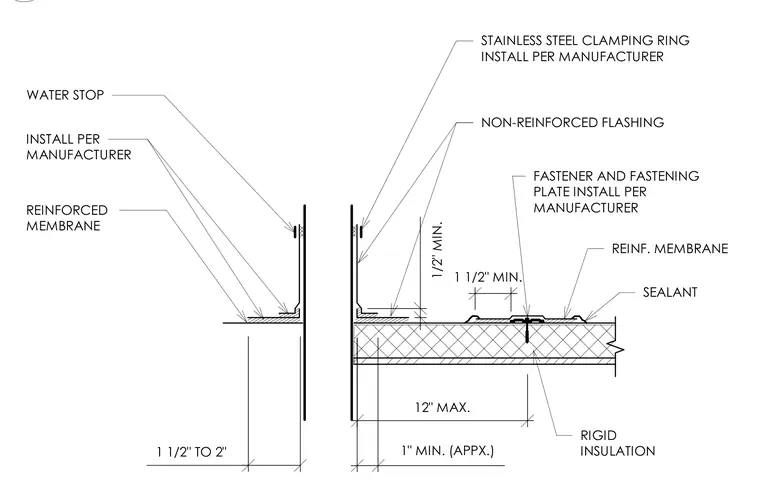

This field fabricated pipe flashing assembly waterproofing penetrates a roof or wall with rigid insulation. A reinforced membrane and water stop lay at the base, overlain by non-reinforced flashing secured by a stainless steel clamping ring installed per the manufacturer. Fasteners and fastening plates anchor the assembly into the insulation layer, finished with a protective sealant bead.
1 1/2" TO 2" 12" MAX. 1" MIN. (APPX.) 1/2" MIN. 1 1/2" MIN. INSTALL PER MANUFACTURER REINFORCED MEMBRANE WATER STOP STAINLESS STEEL CLAMPING RING INSTALL PER MANUFACTURER FASTENER AND FASTENING PLATE INSTALL PER MANUFACTURER NON-REINFORCED FLASHING REINF. MEMBRANE SEALANT RIGID INSULATION
