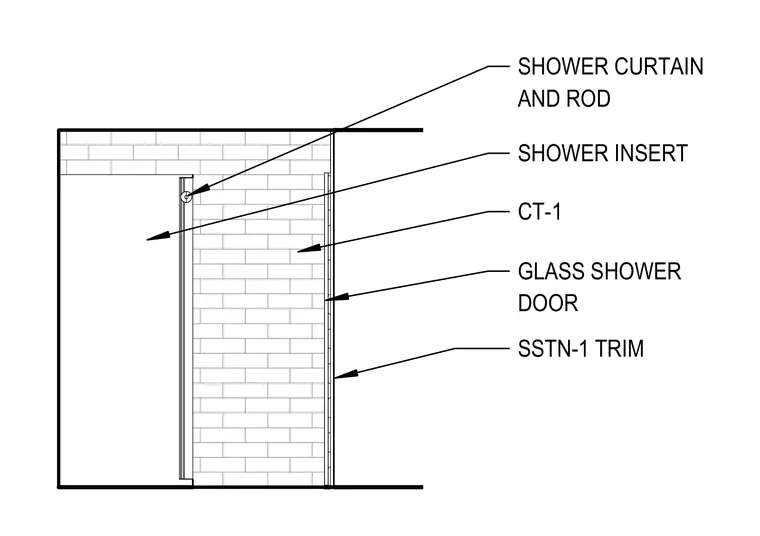

A shower enclosure assembly is anchored by a tiled wall finish designated as CT-1 alongside a shower insert. A glass shower door is installed with stainless steel trim labeled SSTN-1. A shower curtain and rod assembly is mounted above the enclosure.
