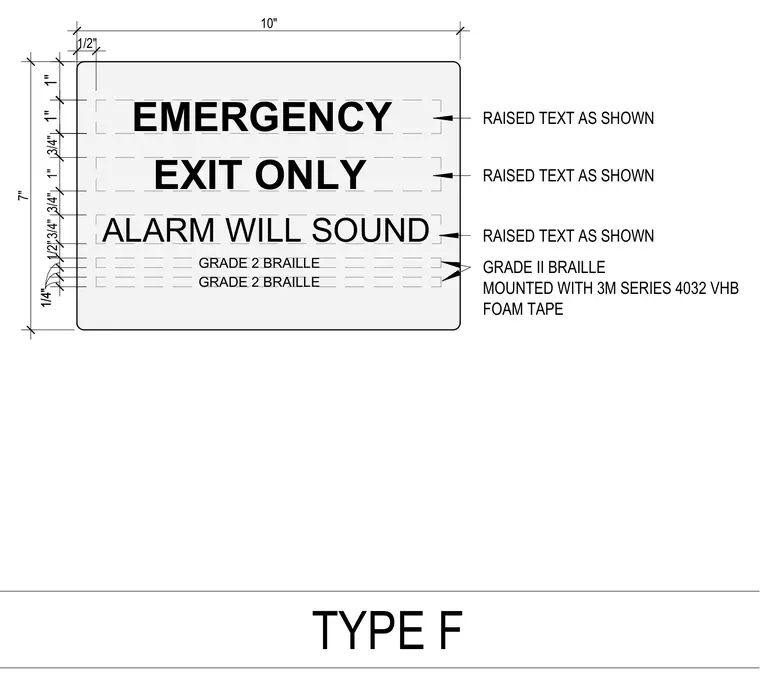

The ten-inch by seven-inch emergency exit sign features raised text reading EMERGENCY EXIT ONLY with ALARM WILL SOUND, accompanied by Grade 2 braille dots positioned beneath the text lines. The sign plate is mounted using 3M Series 4032 VHB foam tape. Dimensions specify precise vertical and horizontal spacing for the text rows and border margins.
TYPE F 10" 7" 1/2" 1" 1" 3/4" 1" 3/4" 3/4" 1/2" 1/4" 1/4" 1/4" ALARM WILL SOUND EMERGENCY EXIT ONLY GRADE 2 BRAILLE GRADE 2 BRAILLE GRADE II BRAILLE MOUNTED WITH 3M SERIES 4032 VHB FOAM TAPE RAISED TEXT AS SHOWN RAISED TEXT AS SHOWN RAISED TEXT AS SHOWN
