A detachable wire rope deflector assembly protects the building facade from platform wire rope abrasion during maintenance operations. The unit features rounded wire rope guides secured with a detachable four-ball pin and lanyard assembly identical to an ISA. Wire ropes are spaced approximately two feet on center with a twenty-one inch dimension between guide components.

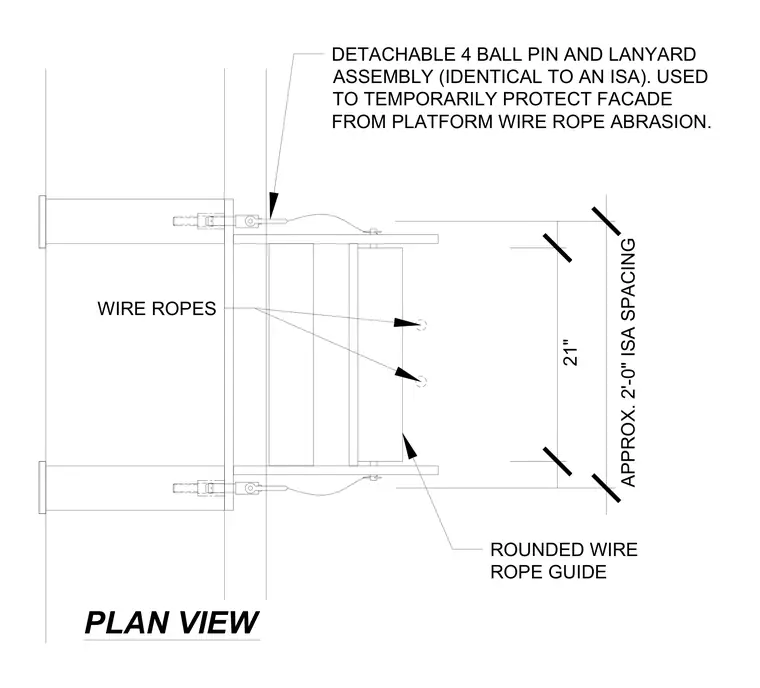

APPROX. 2'-0" ISA SPACING WIRE ROPES ROUNDED WIRE ROPE GUIDE DETACHABLE 4 BALL PIN AND LANYARD ASSEMBLY (IDENTICAL TO AN ISA). USED TO TEMPORARILY PROTECT FACADE FROM PLATFORM WIRE ROPE ABRASION. 21" PLAN VIEW
