A-AD6P2 — Top of Shaft Wall at Roof Deck - Stud Walls Sim

Architectural · A-AD6P2

Top of Shaft Wall at Roof Deck - Stud Walls Sim

Scale: 3" = 1'-0"
Units: imperial
Sheet: A5.04
Discipline: Architectural

Materials

Metal (misc.)Steel Timber / Wood

Elements

Decks Floors / Slabs Roofs Walls

Text on the drawing

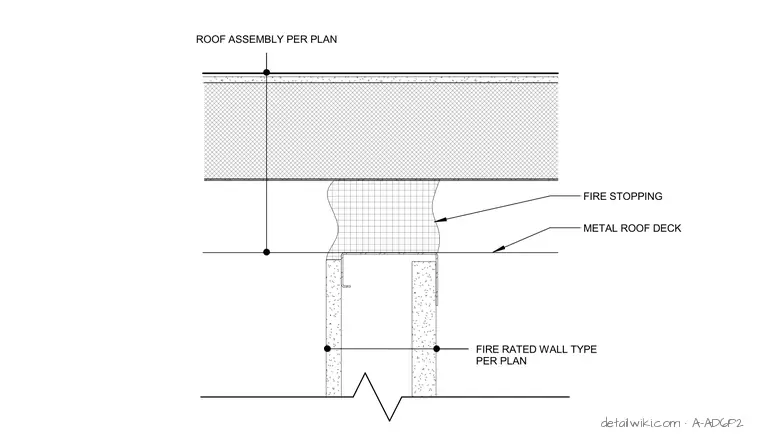

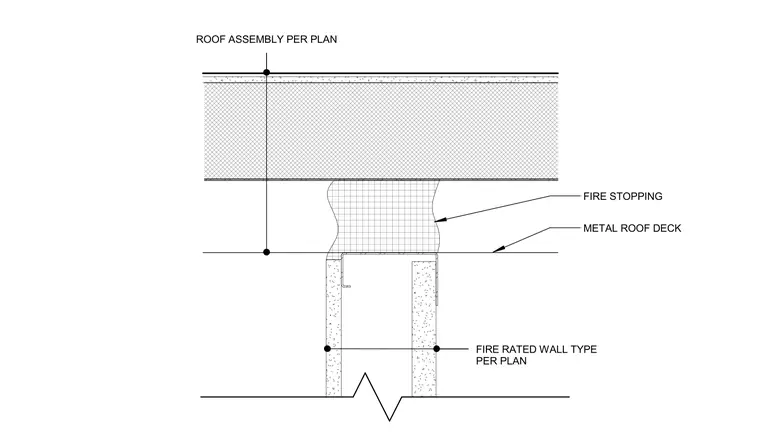

ROOF ASSEMBLY PER PLAN FIRE STOPPING FIRE RATED WALL TYPE PER PLAN METAL ROOF DECK
