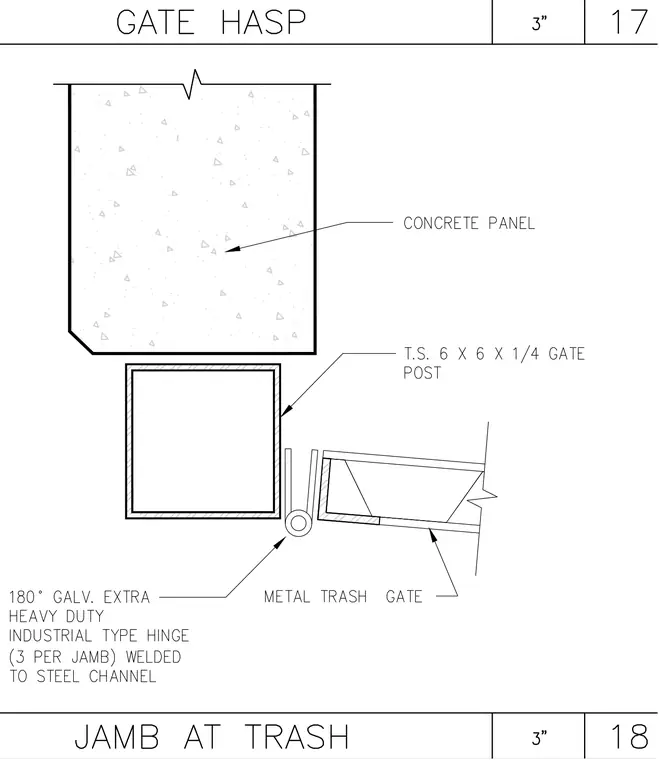

A metal trash gate hangs from a 180-degree galvanized extra heavy duty industrial type hinge, with three hinges per jamb welded to a steel channel. The gate swings adjacent to a 6x6x1/4 inch structural steel tube gate post. The gate post is positioned next to a concrete panel.
