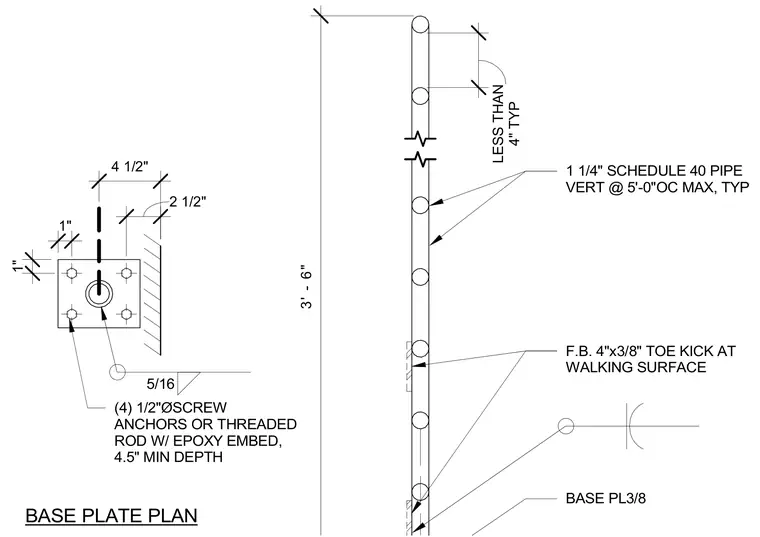

A three-eighths-inch thick base plate connects a one and one-quarter-inch Schedule 40 vertical pipe post with four half-inch diameter screw anchors or threaded rods featuring epoxy embedment to a minimum depth of four and one-half inches. A five-sixteenths inch fillet weld secures the pipe to the base plate. A four-by-three-eighths-inch flat bar toe kick is positioned at the walking surface. Vertical pipe posts are spaced at a maximum of five feet on center with a height of three feet six inches.
BASE PL3/8 4" TYP LESS THAN 1 1/4" SCHEDULE 40 PIPE VERT @ 5'-0"OC MAX, TYP F.B. 4"x3/8" TOE KICK AT WALKING SURFACE 1" 1" 4 1/2" 2 1/2" 5/16 BASE PLATE PLAN 3' - 6" (4) 1/2"ØSCREW ANCHORS OR THREADED ROD W/ EPOXY EMBED, 4.5" MIN DEPTH
