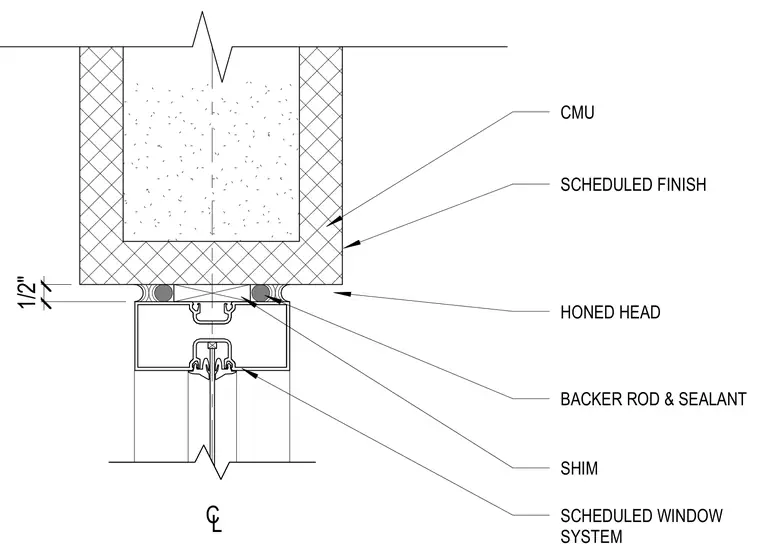

The scheduled window system installs beneath a concrete masonry unit wall with a half-inch shim space at the head. A backer rod and sealant joint seal the exterior gap between the window frame and the masonry. The CMU wall features a scheduled finish with a honed head.
CMU BACKER ROD & SEALANT SCHEDULED WINDOW SYSTEM SCHEDULED FINISH HONED HEAD CL 1/2" SHIM
