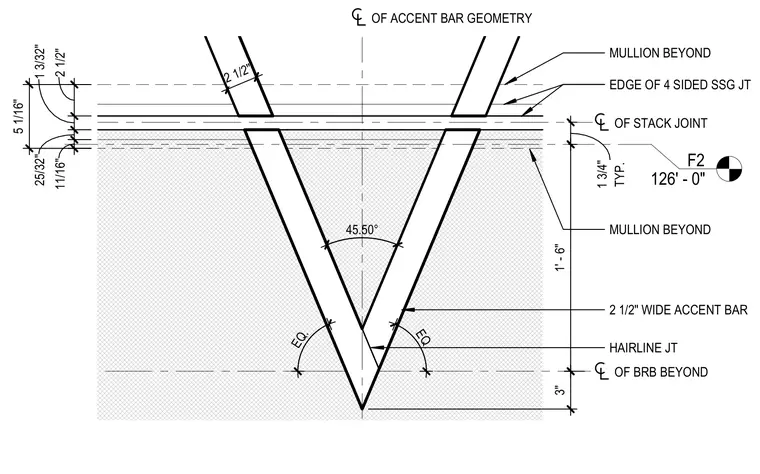

An architectural elevation detail shows the intersection of a two-and-a-half-inch wide accent bar forming a geometric angle with adjacent mullions beyond. The assembly features a four-sided structurally-sealed glazing joint aligned with the centerline of a stack joint. Dimension strings locate the hairline joint, accent bar geometry centerline, and stack joint centerline at specific offsets including one-foot-six-inches typical, one-and-three-quarter-inches typical, and three inches. The V-shaped accent bar geometry is set at a forty-five-point-five-degree angle with equal spacing callouts.
F2 126' - 0" OF STACK JOINT 1 ' - 6 " T Y P . 1 3 / 4 " 1 1 / 1 6 " 2 5 / 3 2 " 1 3 / 3 2 " 2 1 / 2 " 5 1 / 1 6 " 2 1/2" WIDE ACCENT BAR MULLION BEYOND MULLION BEYOND EDGE OF 4 SIDED SSG JT OF BRB BEYOND OF ACCENT BAR GEOMETRY E Q . E Q . 3 " 4 5 . 5 0 ° HAIRLINE JT 2 1 / 2 "
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
