Architectural · A-ACQGE

Vanity Counter and Sink Apron Wall Assembly Detail

Materials

Steel Masonry / CMU Stone Gypsum / Drywall

Elements

Waterproofing / Flashing Anchors / Embeds Connections / Plates

Connections

HSS Connection Bolted Connection Embed Plate

About this detail

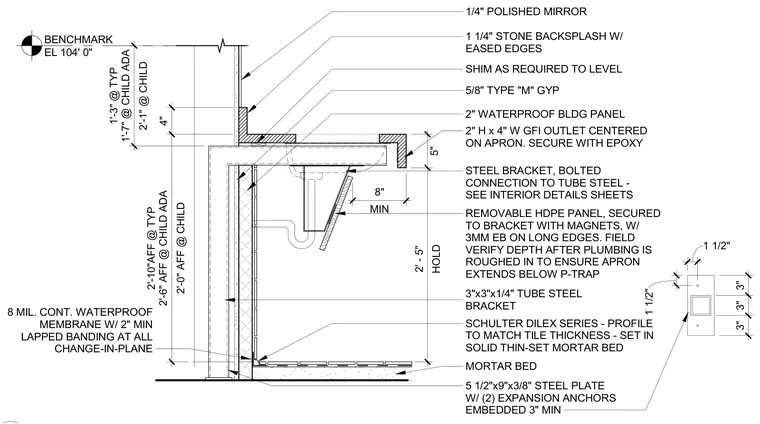

A 3-inch by 3-inch by 1/4-inch hollow structural section tube steel bracket anchors the vanity assembly, secured via a 5-1/2-inch by 9-inch by 3/8-inch steel plate with two expansion anchors embedded 3 inches minimum. The wall framing consists of 5/8-inch Type M gypsum board backed by a 2-inch waterproof building panel and an 8-mil continuous waterproof membrane with 2-inch minimum lapped banding at all changes in plane. A 1-1/4-inch stone backsplash with eased edges sits atop the counter, adjacent to a 1/4-inch polished mirror. Below the counter, a removable high-density polyethylene apron panel is secured to the bracket with magnets and features 3mm edge banding on long edges, sized to extend below the plumbing P-trap. A Schluter Dilex series movement joint profile matches the tile thickness and is set in a solid thin-set mortar bed over a mortar bed. A 2-inch high by 4-inch wide ground fault interrupter outlet is centered on the apron and secured with epoxy.
