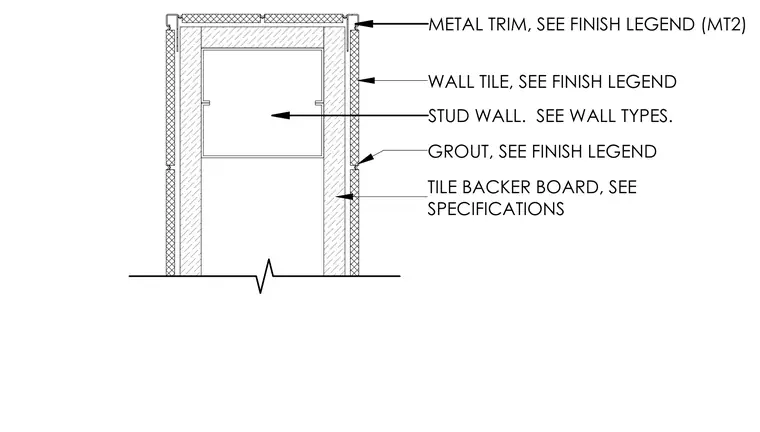

A stud wall configured per wall types supports a tile backer board specified separately, which receives wall tile and grout per the finish legend. An exterior metal trim piece (MT2) finishes the 90-degree outside corner transition.
STUD WALL. SEE WALL TYPES. WALL TILE, SEE FINISH LEGEND TILE BACKER BOARD, SEE SPECIFICATIONS GROUT, SEE FINISH LEGEND METAL TRIM, SEE FINISH LEGEND (MT2)
