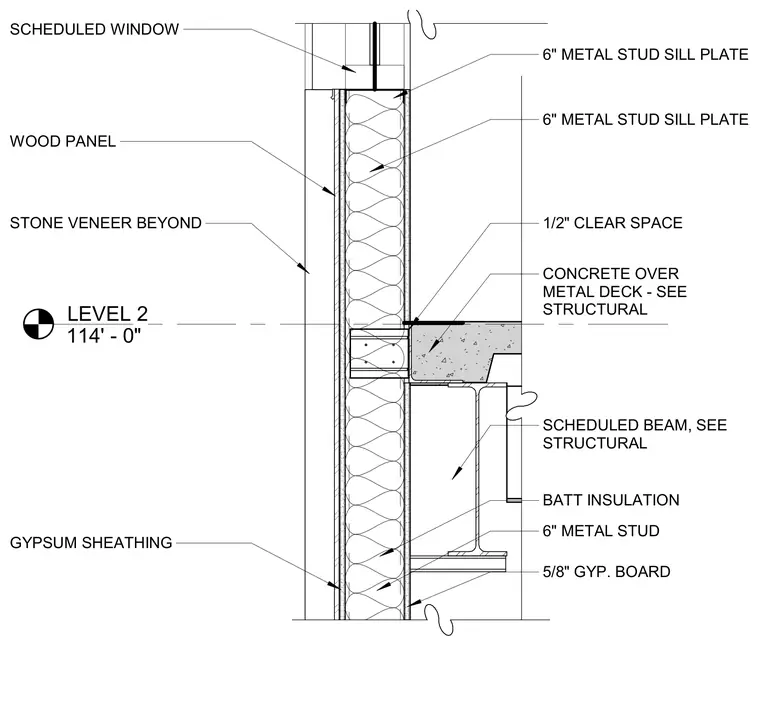

An exterior assembly at Level 2 is anchored by a scheduled steel beam supporting a concrete over metal deck floor. The exterior wall features six-inch metal studs with sill plates, batt insulation, and gypsum sheathing, finished with an exterior wood panel and stone veneer beyond. A half-inch clear space separates components near the floor slab junction. The interior face is clad with five-eighths inch gypsum board, and a scheduled window aligns with the upper wall framing.
LEVEL 2 114' - 0" WOOD PANEL SCHEDULED WINDOW STONE VENEER BEYOND SCHEDULED BEAM, SEE STRUCTURAL GYPSUM SHEATHING 5/8" GYP. BOARD CONCRETE OVER METAL DECK - SEE STRUCTURAL 6" METAL STUD BATT INSULATION 1/2" CLEAR SPACE 6" METAL STUD SILL PLATE 6" METAL STUD SILL PLATE
