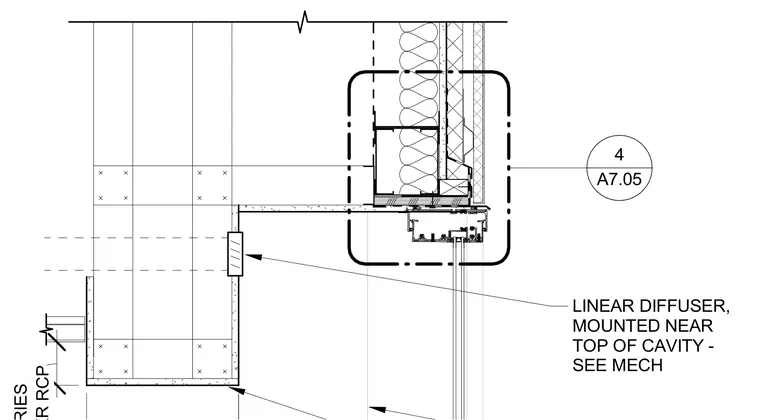

A linear diffuser is mounted near the top of the wall cavity adjacent to the window jamb and ceiling assembly. The window frame aligns with the exterior wall layers, including insulation and exterior finish. A detail reference bubble points to sheet A7.05 for further coordination.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
