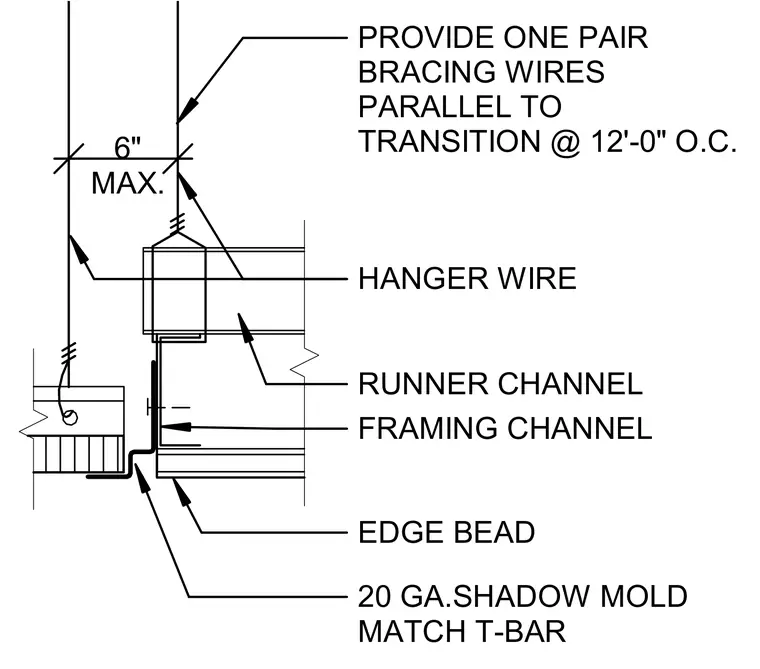

A suspended gypsum board ceiling transition terminates at a shadow mold edge bead. Hanger wires support the runner channels and framing channels of the ceiling grid. A twenty gauge shadow mold matches the adjacent T-bar system. One pair of bracing wires is provided parallel to the transition at twelve feet on center, located within six inches maximum from the vertical drop.
6" MAX. PROVIDE ONE PAIR BRACING WIRES PARALLEL TO TRANSITION @ 12'-0" O.C. HANGER WIRE RUNNER CHANNEL FRAMING CHANNEL EDGE BEAD 20 GA.SHADOW MOLD MATCH T-BAR
