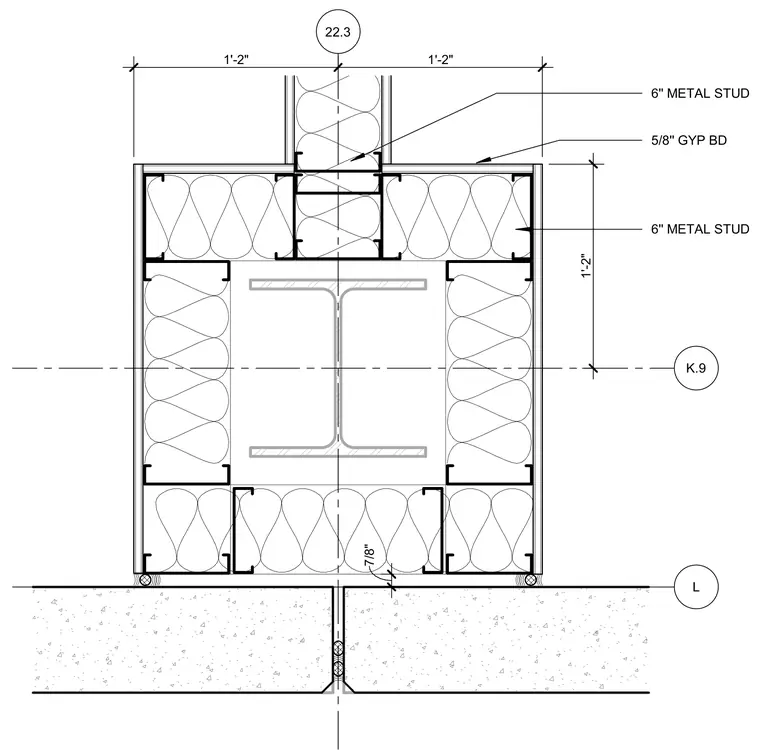

A structural column is enclosed by six-inch metal studs wrapped in five-eighths-inch gypsum board, forming a framed column wrap that intersects with an exterior wall. The perimeter of the enclosure measures one foot two inches by one foot two inches. The assembly meets a concrete slab edge featuring a control joint.
