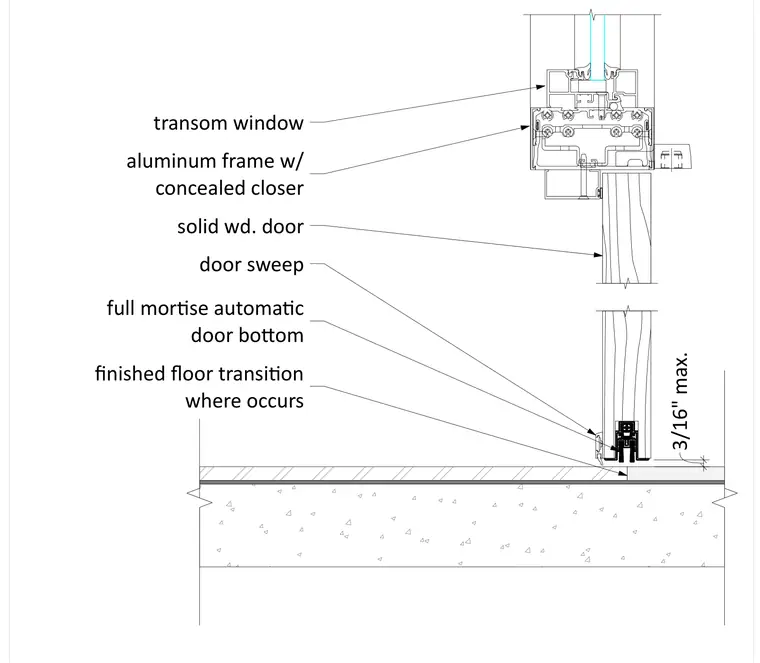

An interior storefront door head and sill assembly features an aluminum frame with a concealed closer supporting a transom window above and a solid wood door below. The door bottom is fitted with a full mortise automatic door sweep maintaining a maximum three-sixteenths inch clearance above the finished floor, where a flooring transition occurs.
3/16" max. solid wd. door aluminum frame w/ concealed closer transom window full mor Ɵse automaƟc door bo Ʃom door sweep finished floor transi Ɵon where occurs
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
