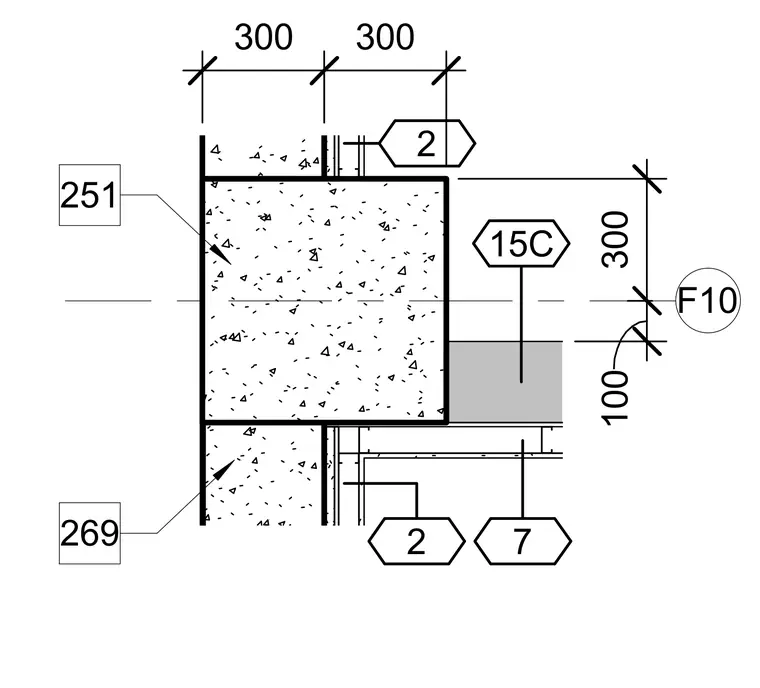

A concrete wall intersects with dimensional layouts at the floor junction. Numbered reference tags and dimension strings indicate spacings of three hundred millimeters. A shaded component labeled with tag 15C connects near the structural junction. Additional reference tags 2, 7, 251, 269, and F10 indicate related assembly components and grid lines.
